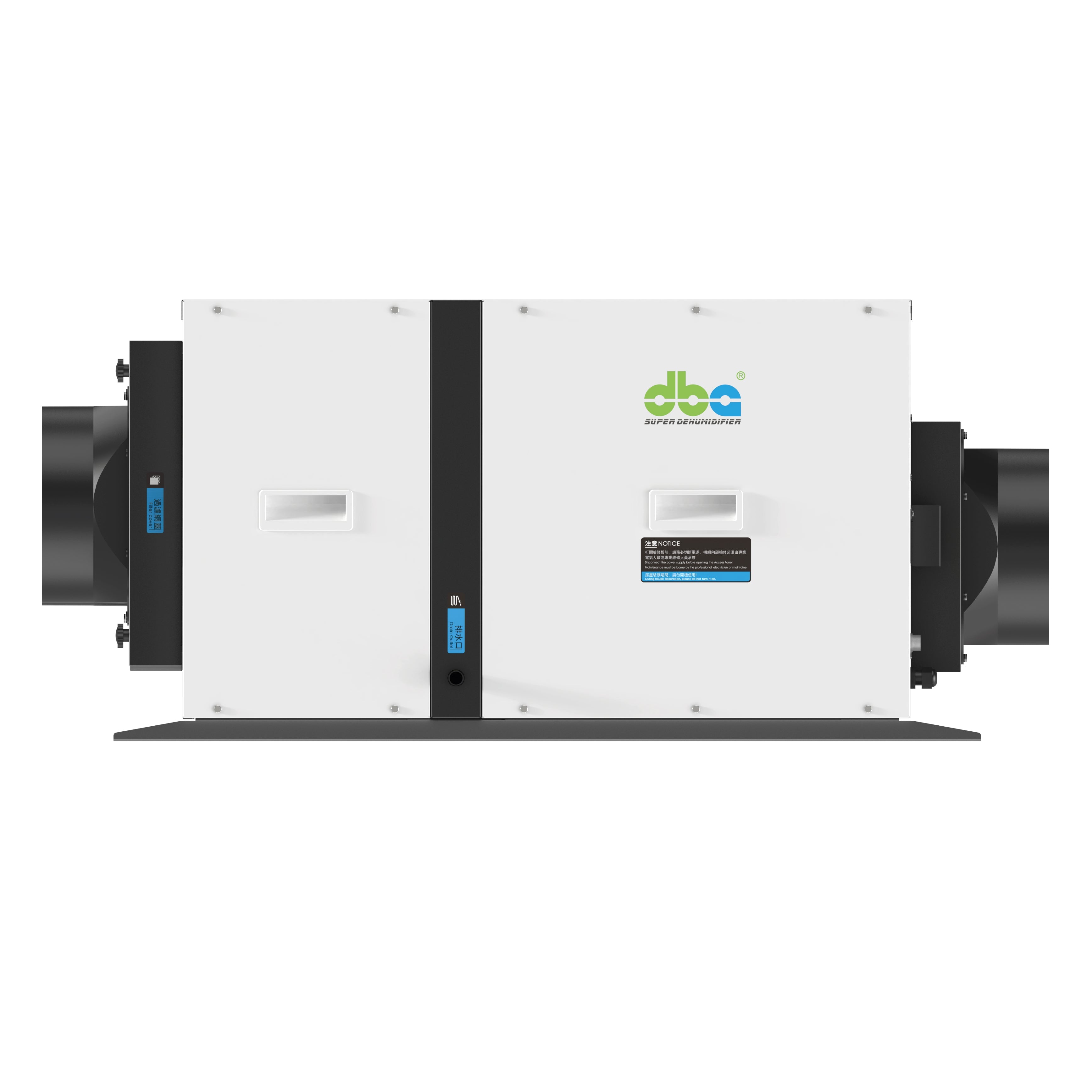

Commercial Ceiling · GEC Series
1,200 CMH for serious throughput.
Mid-range commercial ceiling unit. RS485 BMS-ready with high static pressure for ducted distribution across larger floors.
At a glance
Long ducted runs
RS485 Modbus
Rock-stable control
One unit, many rooms
Pathogen sterilisation
Continuous operation
Technical data
| Dehumidifying Capacity (30°C 80% RH) | 145 L/day |
| Dehumidifying Capacity (26.7°C 60% RH) | 85 L/day |
| Cover Area | 1,500 – 1,700 sq ft |
| Airflow | 1,200 CMH |
| Sound Pressure Level (3 m) | 50 dB(A) |
| Static Pressure | 100 Pa |
| Rated Power | 1,520 W |
| Max. Power | 2,220 W |
| Voltage | 220–240V 50Hz |
| Drain Height | 1.8 m |
| Air Outlet/Inlet Flange | ⌀196 mm |
| Refrigerant | R410A / 1.2 kg |
| Operating Temperature | 5 – 40°C |
| Weight | 70 kg |
| Dimensions (L × W × H) | 1,005 × 695 × 440 mm |
| Connectivity | RS485 Modbus |
Inside the unit
Standard across the Commercial Ceiling series.
