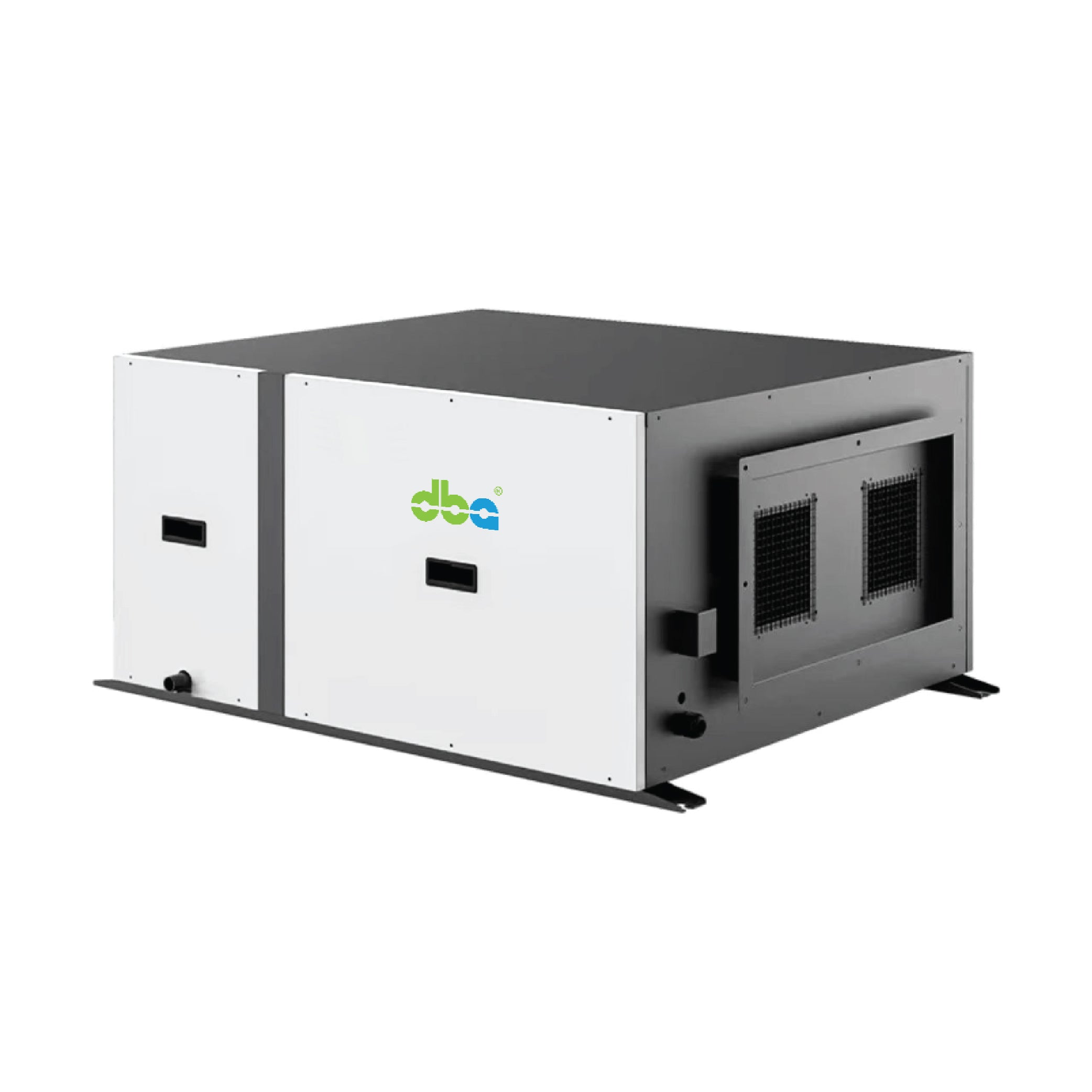

Commercial Ceiling · GEC Series
Three-phase ceiling power.
Step into three-phase 380V territory. 1,700 CMH airflow drives dry air through extended duct runs to multi-room commercial floors.
At a glance
Long ducted runs
RS485 Modbus
Rock-stable control
One unit, many rooms
Pathogen sterilisation
Continuous operation
Technical data
| Dehumidifying Capacity (30°C 80% RH) | 280 L/day |
| Dehumidifying Capacity (26.7°C 60% RH) | 132 L/day |
| Cover Area | 2,500 – 3,000 sq ft |
| Airflow | 1,700 CMH |
| Sound Pressure Level (3 m) | 58 dB(A) |
| Static Pressure | 80 Pa |
| Rated Power | 2,580 W |
| Max. Power | 3,510 W |
| Voltage | 380V 3N 50Hz |
| Refrigerant | R410A / 1.9 kg |
| Operating Temperature | 5 – 40°C |
| Weight | 108 kg |
| Dimensions (L × W × H) | 1,137 × 900 × 540 mm |
| Connectivity | RS485 Modbus |
Inside the unit
Standard across the Commercial Ceiling series.
Where it shines
Other models
Tell us about the space and the load. A specialist colleague will reply within one business day with availability and pricing.
Or browse the full DBA catalog at dba.sg
