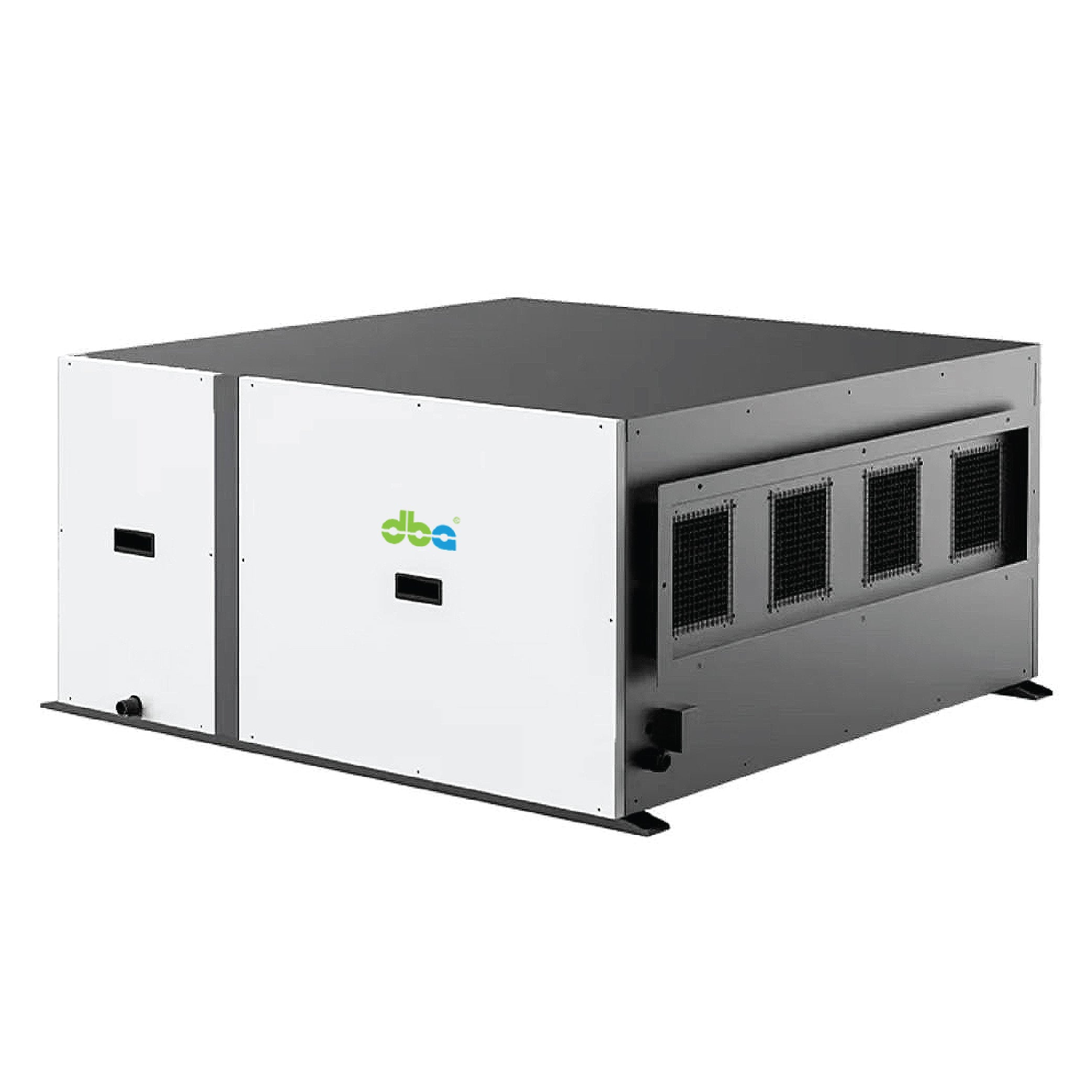

Commercial Ceiling · GEC Series
Twin-circuit performance.
Dual refrigerant circuits deliver 400 L/day with redundancy. 3,250 CMH airflow makes this the default for large commercial floors and event venues.
At a glance
Long ducted runs
RS485 Modbus
Rock-stable control
One unit, many rooms
Pathogen sterilisation
Continuous operation
Technical data
| Dehumidifying Capacity (30°C 80% RH) | 400 L/day |
| Dehumidifying Capacity (26.7°C 60% RH) | 240 L/day |
| Cover Area | 3,000 – 4,000 sq ft |
| Airflow | 3,250 CMH |
| Sound Pressure Level (3 m) | 65 dB(A) |
| Static Pressure | 80 Pa |
| Rated Power | 4,600 W |
| Max. Power | 6,250 W |
| Voltage | 380V 3N 50Hz |
| Refrigerant | R410A / 1.9 kg × 2 |
| Operating Temperature | 5 – 40°C |
| Weight | 210 kg |
| Dimensions (L × W × H) | 1,270 × 1,200 × 605 mm |
| Connectivity | RS485 Modbus |
Inside the unit
Standard across the Commercial Ceiling series.
Where it shines
Other models
Tell us about the space and the load. A specialist colleague will reply within one business day with availability and pricing.
